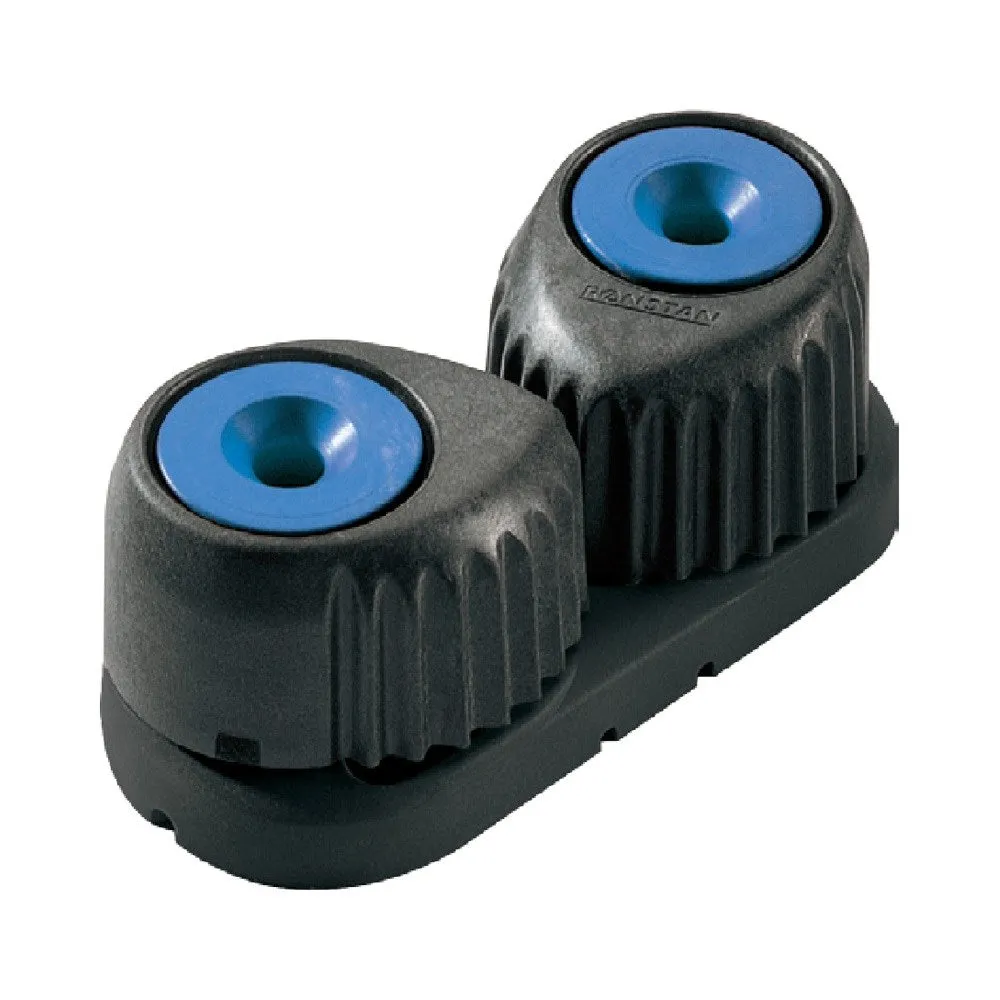

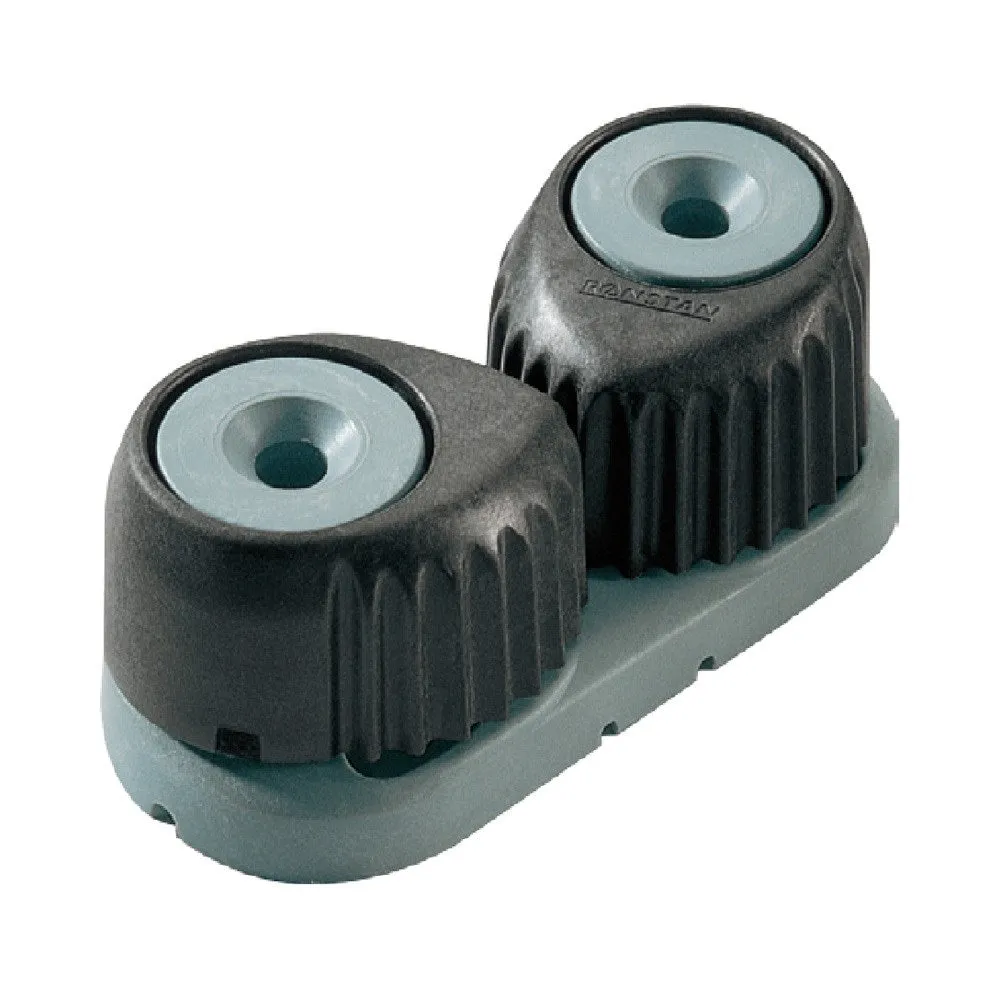

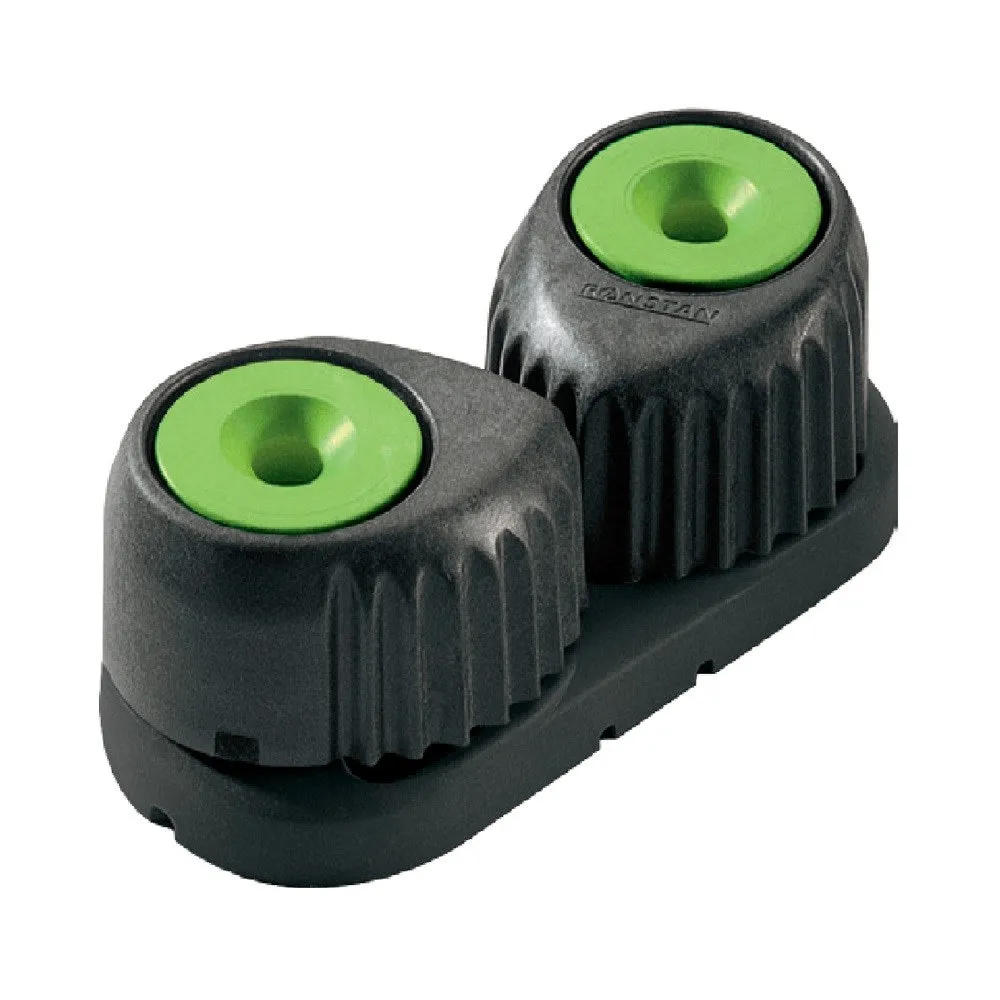

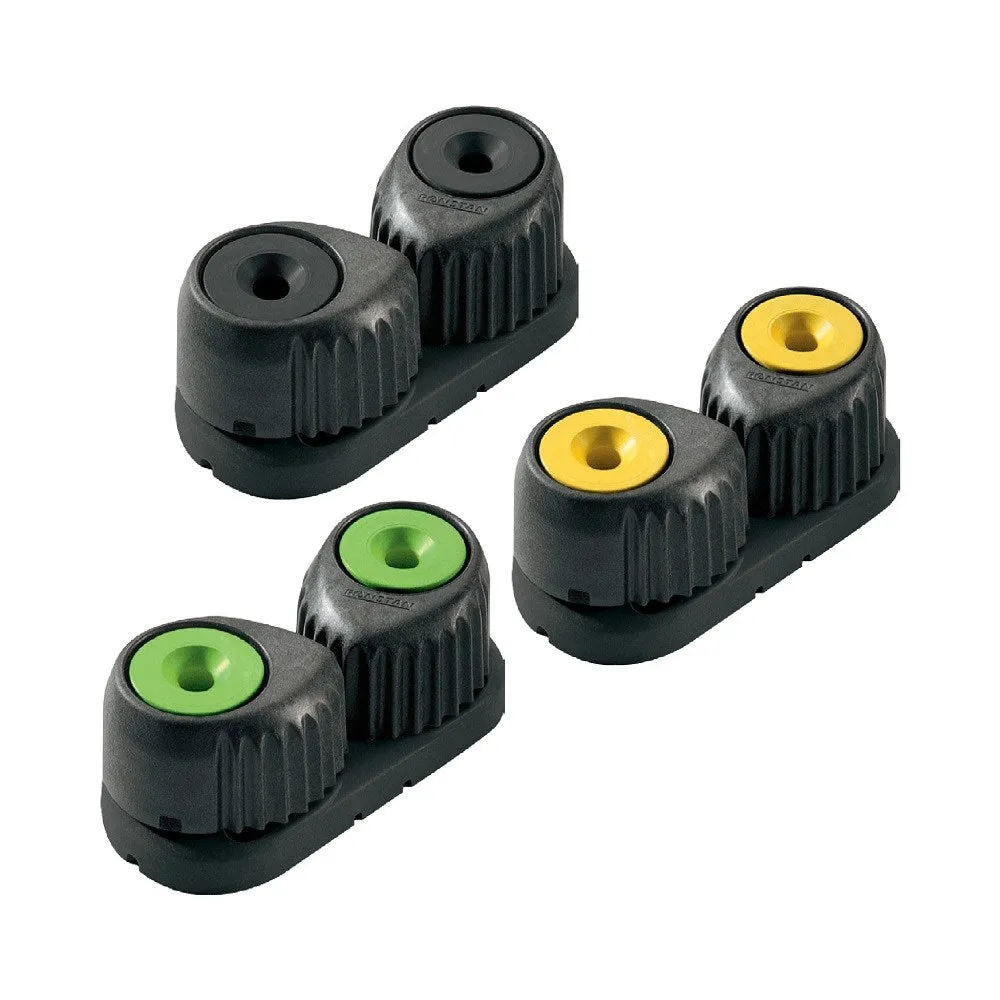

Ronstan Carbon Fibre C-Cleat / Cam Cleat, Medium
RF5410, RF5410B, RF5410G, RF5410R, RF5010, RF5410Y
- Design, materials selection and advanced manufacturing methods combine to deliver superior strength and holding power, light weight and corrosion resistance
- Cam profile and multi-coil spring minimise line entry and release effort
- Carbon fibre composite cam material provides maximum resistance to heat and abrasion
- Unique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads
Applications
- Range of cleats for all requirements including control lines, jib sheet and mainsheet cleating
Materials
- Carbon fibre composite cams
- Long strand glass fibre reinforced polymer base
- PTFE impregnated Acetal slotted bearing
- Stainless steel multi-coil spring
Specifications
- Rope Ø: 3 - 12 mm
- Height: 26.0 mm
- Width: 31.0 mm
- Length: 66.0 mm
- Fastener Ø: M5 mm
- Fastener Hole Centres: 38.0 mm
- MWL: 125 kg
- BL: 250 kg
- Weight: 50 g
