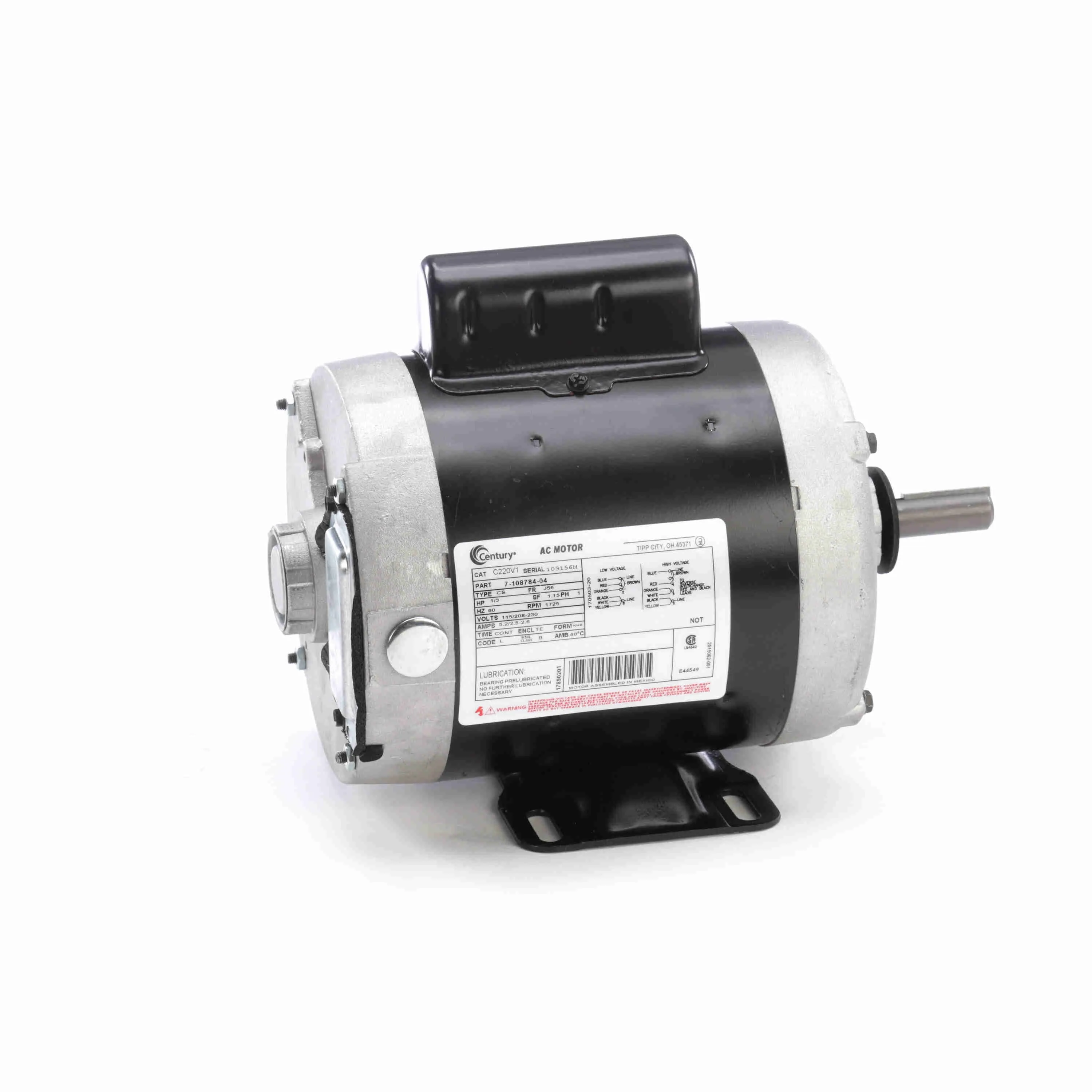

Product Type: Capacitor Start

HP: 1/3

RPM: 1725

Volts: 115/208-230

Amps: 5.2/2.5/2.6

Hz: 60

Phase: 1

Frame: 56

Enclosure Type: TENV (Totally Enclosed Non Ventilated)

Mounting: Rigid

Motor Diameter: 6-1/2"

Shaft Diameter: 5/8" Keyed

Shaft Length: 1-7/8"

Rotation: Reversible

Number of Speeds: 1

Service Factor (SF): 1.15

Bearings: Ball

Maximum Ambient Temperature: 40° C

Insulation Class: B

Duty Cycle: Continuous

Capacitor: Included

C220V1 is listed in Century's cross reference as a possible substitute for the following: Marathon G550, A.O. Smith 108784, A.O. Smith 311P322, A.O. Smith C56H4TE100, A.O. Smith C56H4TE101, A.O. Smith EB1034, A.O. Smith TN1024, A.O. Smith TN1034, Baldor L3501, Century 108784, Century 327P786, Century C220, GE 5KC35MN43, GE C254, GE H185, Dayton 2K584, Dayton 4K936, Johnstone Supply S88-146, Leeson 110010, Leeson 113635, Marathon G330, Marathon H064, Marathon H064L, Marathon V56C17F2040, Marathon V56C17F5300, Marathon V56C17F5316, Packard 91006, Universal Electric C220
